Replacement set screw for Brass Smith primer feed

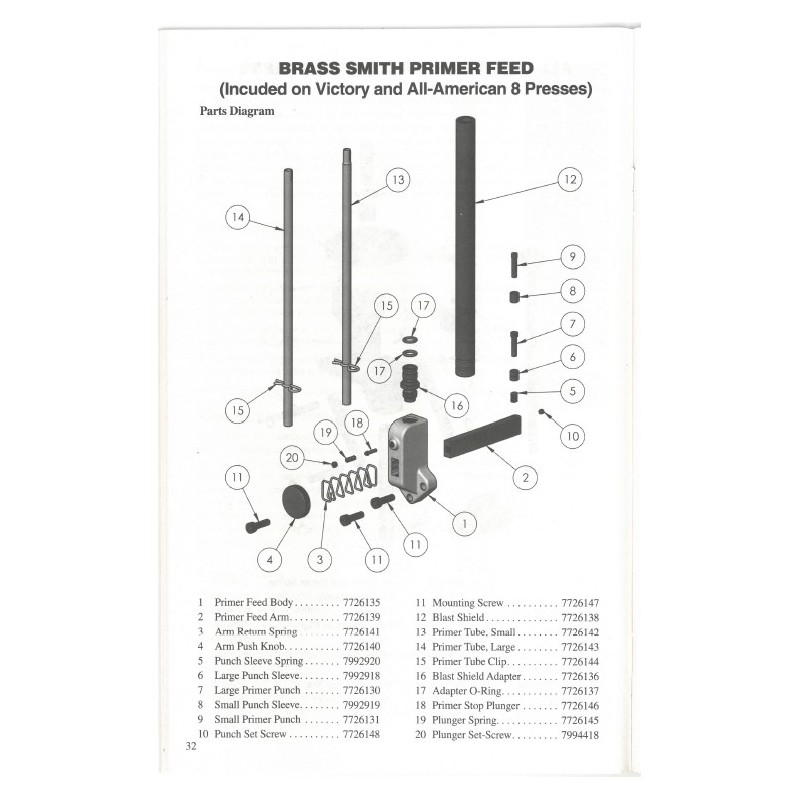

Replacement Set Screw for the Punch of the Brass Smith Primer Feed

The replacement set screw for the punch of the Brass Smith primer feed is a small but critical component for reloaders who rely on consistent primer delivery. This screw secures the punch in its correct position within the feed assembly, preventing unwanted movement, misalignment and primer feed failures. Proper use of this replacement helps maintain repeatable primer seating and reduces stoppages that slow down the reloading workflow.

In benches and small workshops, timely replacement of small components like this set screw prevents more significant issues. Although compact, the screw operates within tight tolerances: a loose or worn screw can allow the punch to shift or tilt, causing mislocated primers or intermittent feeding. Choosing a replacement that matches the original dimensions and provides a snug fit with the thread and punch slot is essential for long-term reliability.

This article covers the main features, step-by-step installation, maintenance and buying guidance for a replacement set screw compatible with Brass Smith primer feeds. The instructions are designed for non-technical users who need clear, practical steps to replace the piece, keep equipment in optimal condition and ensure reliable press operation.

Main features

• Dimensional fit compatible with standard Brass Smith primer feeds
• Corrosion-resistant finish for extended service life
• Design allows precise tightening without damaging the punch
• Optimized length to maintain punch position under repeated cycles
• Durable material suited to frequent workshop handling

Dimensions and material quality are decisive for ensuring a secure fit. A well-made set screw has close tolerances that prevent play between the head and its seat. A corrosion-resistant finish also protects the component from workshop contaminants and lubricants that could accelerate wear. Verify that the thread pitch matches the feed body and that the screw length allows adjustment without interfering with punch movement.

In practice, a good replacement screw provides consistent, predictable torque when tightened. A head compatible with common hand tools reduces the risk of rounding during installation, which is important when making repeated adjustments to calibrate punch depth for different primer types or press setups.

Workshops that value uninterrupted operation typically keep spare set screws on hand. Having replacements available avoids unexpected downtime and ensures production continues smoothly even when a small part fails.

Step-by-step installation

Prepare the workspace: clean the area and place a small parts tray nearby. Working on a clear surface minimizes loss of components. Secure the press and deactivate any automatic feeders to avoid accidental movement.

Remove the old screw: use the recommended tool to loosen and extract the existing set screw carefully. If it is seized by grime or corrosion, apply a penetrating lubricant and allow it to work before applying force. Remove the punch gently to avoid damaging its tip or guide.

Install the new screw: position the punch and thread the replacement set screw until you feel light contact. Tighten to a moderate torque; avoid over-tightening. Check punch movement to ensure there is no binding and run a few empty feed cycles to confirm proper primer placement.

Maintenance, adjustments and troubleshooting

Routine inspection: check the set screw periodically based on cycle count or whenever primer feeding inconsistencies appear. Look for thread wear, corrosion, or head deformation. Quick visual checks catch issues before they lead to component failure.

Fine adjustments: if the punch is misaligned, slightly loosen and reposition the screw to find the setting that delivers reliable primer placement. Make small incremental changes and test across several cycles to determine the optimal position.

Troubleshooting tips: frequent jams may indicate a screw that is too short or has damaged threads. Excessive play suggests wear. If the screw head rounds off during tightening, replace it with a screw whose head better matches your tool. Keeping spares and the right tools in the bench helps resolve issues quickly.

Compatibility and purchasing tips

Before purchasing, confirm compatibility with the exact Brass Smith feed model. Check basic measurements such as thread diameter and effective length. If specifications are unavailable, measure the original screw or consult the feed documentation.

Choose parts from reputable suppliers that state material and tolerance details. A cheaper, unspecified screw may save money upfront but cause recurring problems. Investing in quality replacements ensures durability and a precise fit.

Finally, maintain a minimal stock of spare screws and other fastening items to reduce downtime. A reliable replacement and correct installation will extend the life of the feed and improve consistency in your reloading process.
